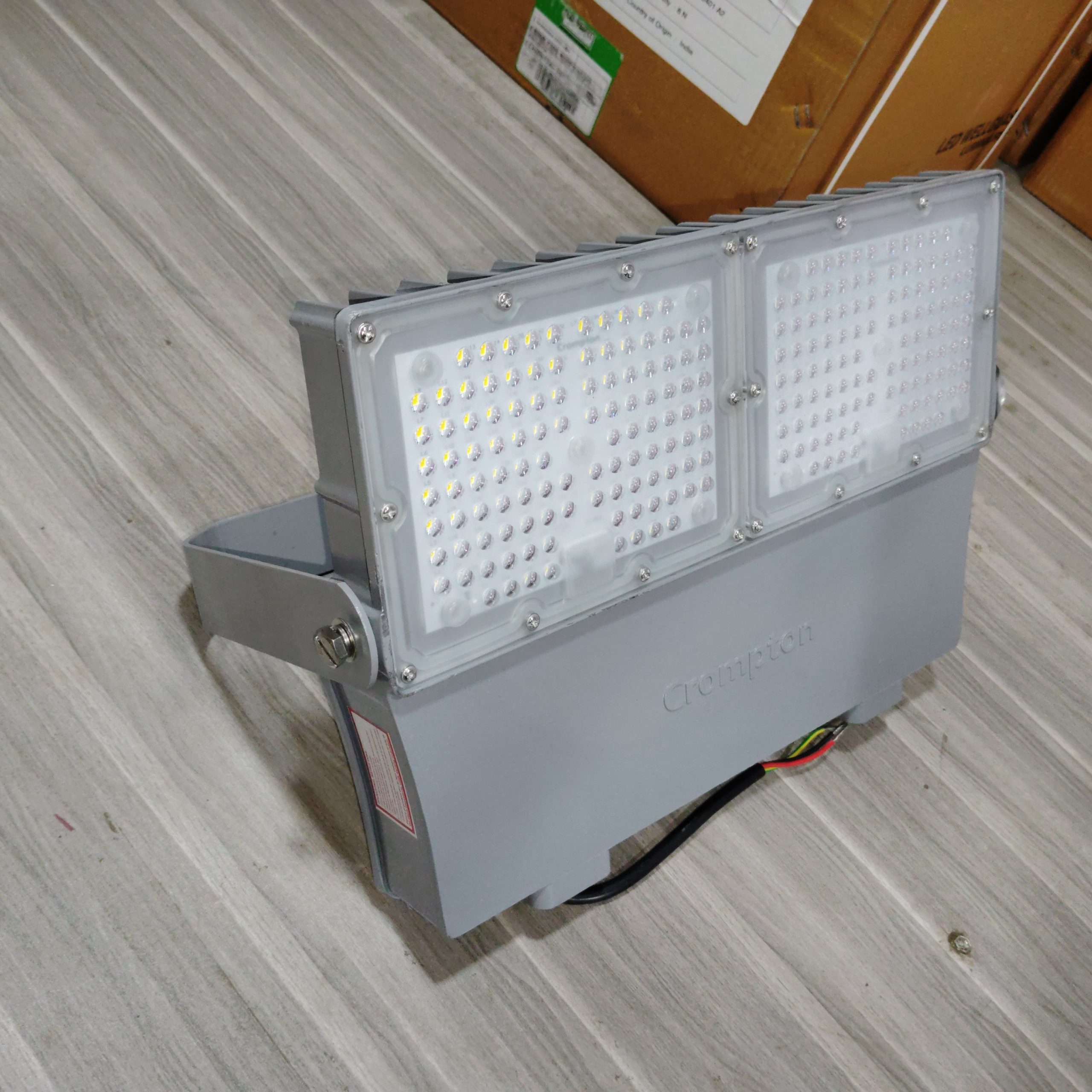

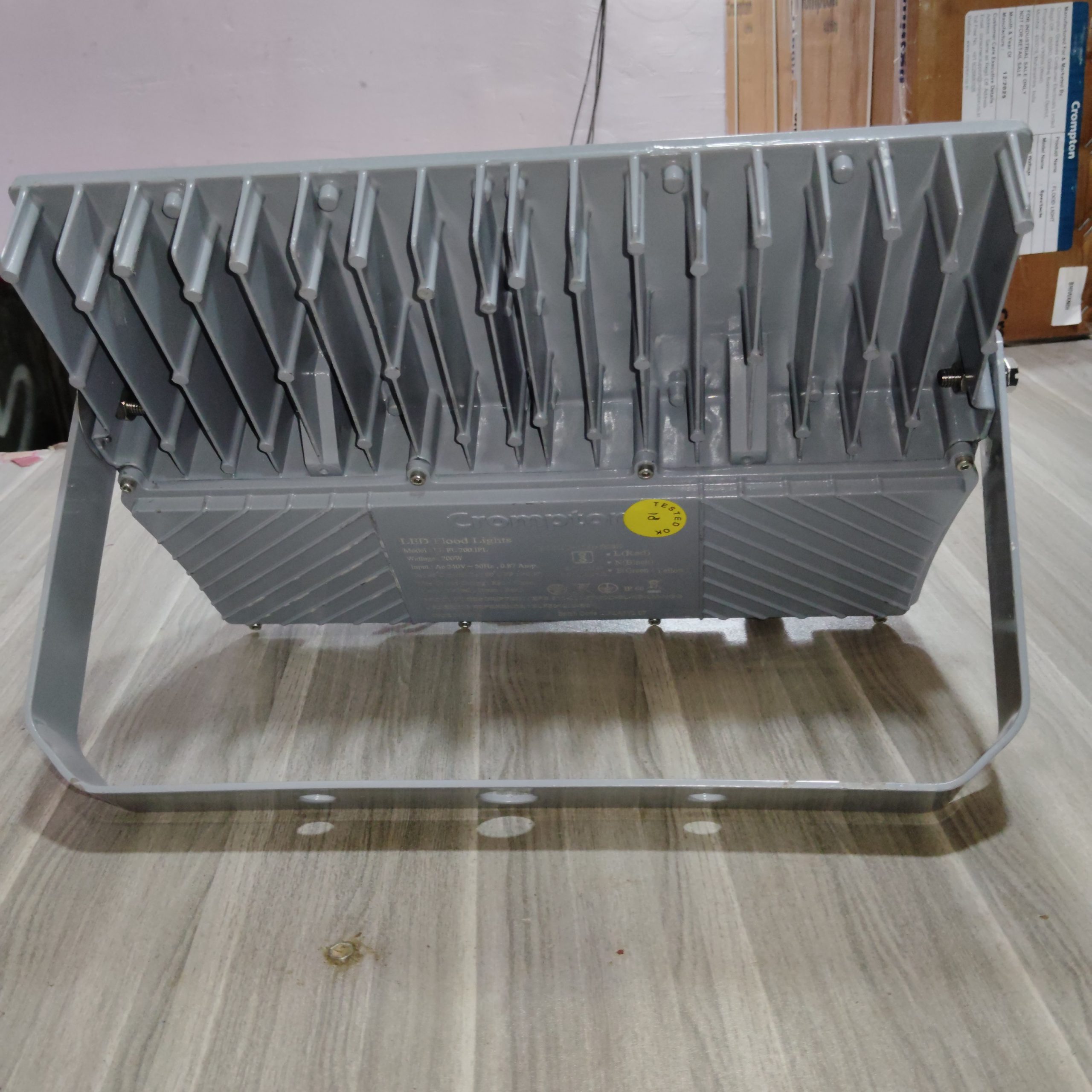

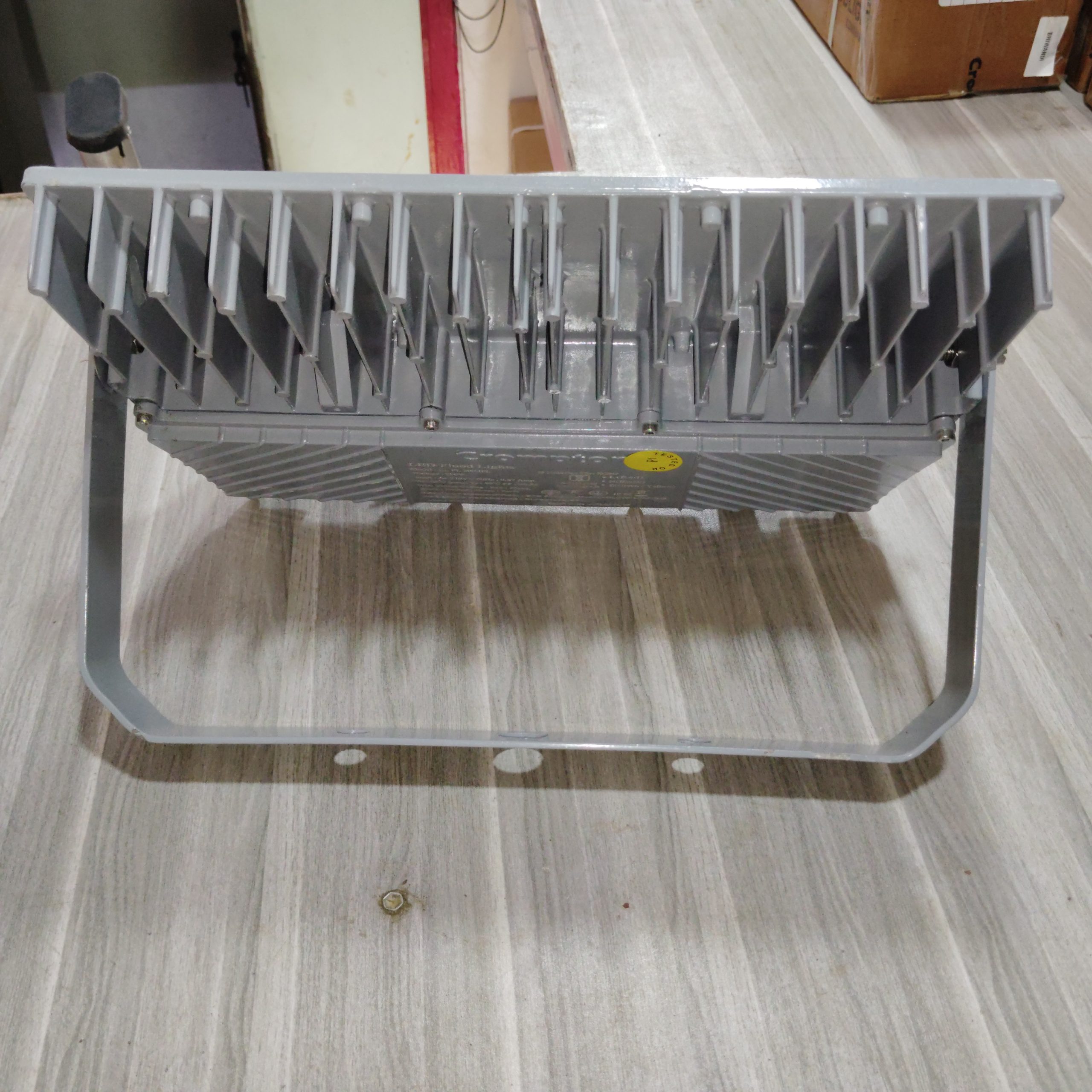

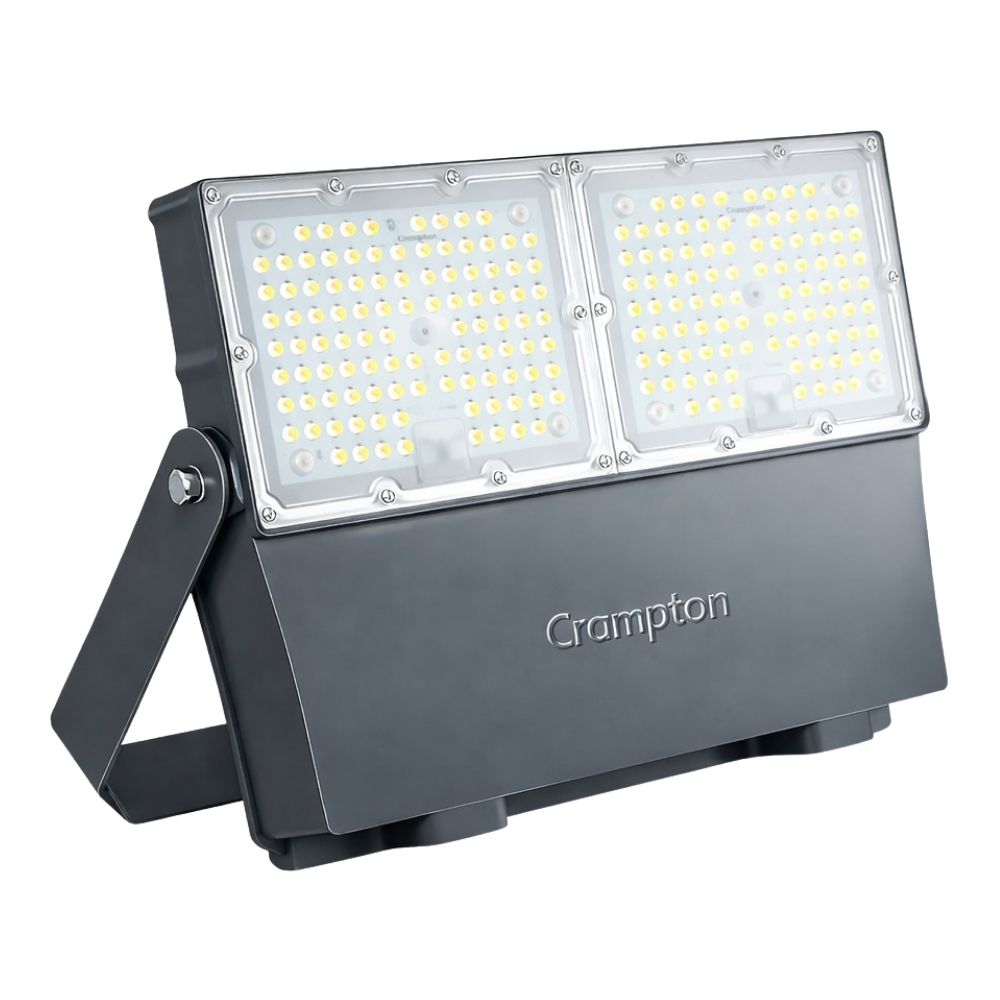

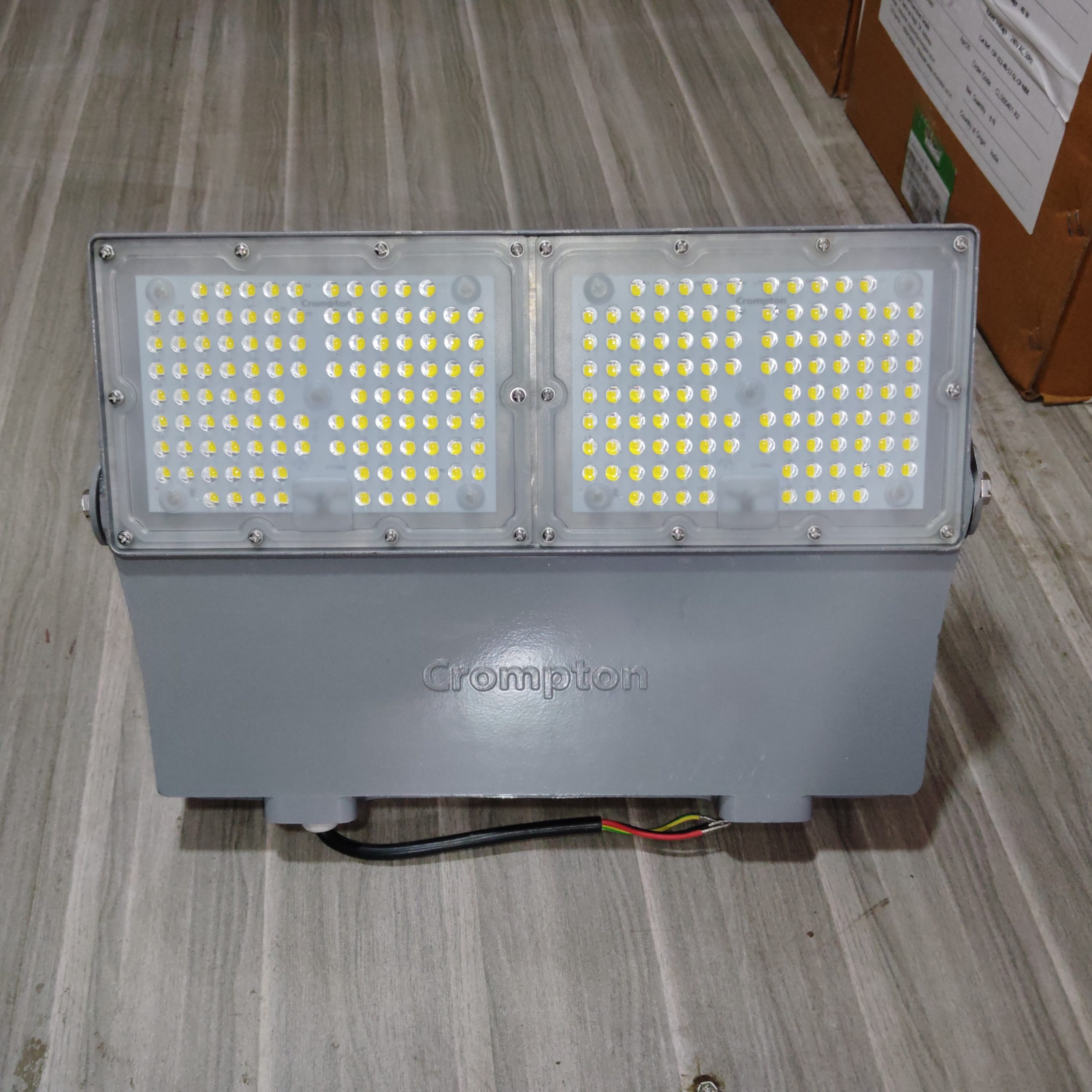

About Crompton 200W LED Flood Light Spectacle Pro TFS-511-200-57-60D-HL2-LM-NGG
Elegantly designed highly efficient PDC aluminum housing in powder coated finish. IP Lens, Fins are provided on housing for better heat dissipation. This luminaire is recommended for illuminating Area lighting, Facade lighting monument lighting, security lighting.
Crompton LED 200W Flood Light – Model: TFS-511-200-57-60D-HL2-LM-NSG
The Crompton LED 200W Flood Light is a high-performance, energy-efficient lighting solution designed for a variety of outdoor applications including area lighting, facade illumination, monument lighting, and security lighting. Built with robust die-cast aluminum housing finished in RAL-7032 powder coating, it ensures durability and excellent heat dissipation through integrated fins.
Key Features:
- Power Consumption: 200W
- Color Temperature: 5700K (Cool Daylight)
- Luminous Efficacy: 120 Lumens per Watt
- Color Rendering Index (CRI): 70
- Operating Voltage: 120-270V AC, 50Hz 3
- Current at 240V: 0.877A
- Power Factor: >0.95
- Total Harmonic Distortion (THD): <10%
- Ingress Protection: IP66, ensuring high resistance to dust and water
- Material: Die-cast aluminum housing and driver housing with powder coating
- Weight: Approximately 3.5 kg
- Surge Protection: Inbuilt 4KV in driver and 10KV external protection
- Earthing: Suitable for 14 SWG wire
- Mounting System: Cradle with 14mm & 20mm mounting holes
- Maintenance: Easy access to control gear cover for maintenance
Product Ordering Code:
- TFS-511-200-57-60D-HL2-LM-NSG (Ordering Code: TLF501201-A2)
Spare Parts Reference:
- Driver: 2 Nos. 100W @ 700mA
- Surge Arrester: 10KV, 440V
