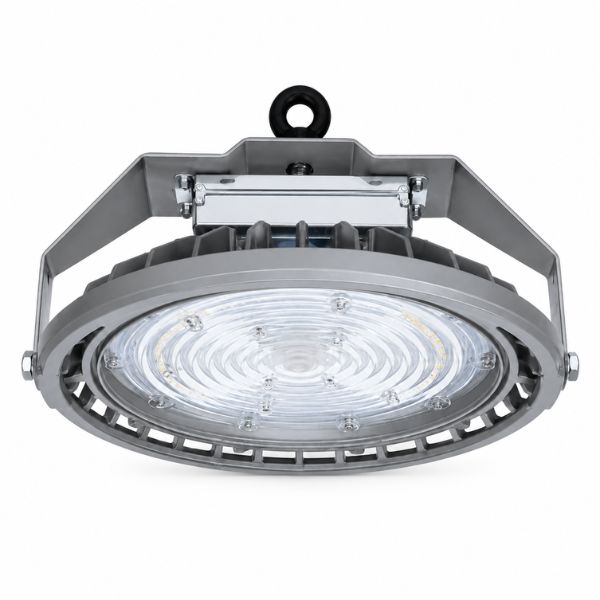

Crompton 150W LED High Bay Light for Industrial Spaces
Large industrial facilities need dependable lighting to maintain clear visibility across expansive areas, especially where fixtures are installed at considerable heights. The Crompton 150W LED High Bay Light CIP-346-150-857-60D-HL3-LM-NGG is designed for industrial and commercial environments requiring consistent, efficient, and durable illumination. This high bay light operates at 150W and uses a 5700K colour temperature with a 60° beam angle, making it suitable for warehouses, manufacturing plants, retail spaces, sports arenas, convention centres, and other large indoor areas. Its pressure die-cast aluminium housing, high protection ratings, and long rated burning hours support reliable operation in demanding applications. crompton-100w-delphinus-plus-hi…
Efficient Illumination and Optical Performance
The lighting performance of a high bay fixture depends on effective light distribution and suitable optical characteristics. The Crompton 150W LED High Bay Light features a 60° beam angle, helping provide directed illumination for appropriate high-ceiling applications. Its 5700K CCT produces cool white light, while the CRI is above 80, supporting clear visibility in industrial and commercial environments. crompton-100w-delphinus-plus-hi…
150W Power Rating
With a nominal wattage of 150W, this LED High Bay Light is designed for larger spaces requiring substantial illumination. The technical specifications list a mains current of 0.72A at 240V, providing the electrical characteristics required for its intended operation. crompton-100w-delphinus-plus-hi…
High Luminous Efficacy
The Aquilla Plus range is available with efficacy options of more than 130 lm/W, 150 lm/W, and 170 lm/W. The HL3 configuration in the product model corresponds to the 130 lm/W efficacy category in Crompton’s model naming system. crompton-100w-delphinus-plus-hi…
Durable Construction for Industrial Applications
Industrial lighting fixtures must be capable of operating in environments where dust, impact, and demanding working conditions can be present. This Crompton LED High Bay Light uses a pressure die-cast aluminium housing with a powder-coated RAL-7037 finish. It is rated IP66 for protection and IK10 for impact resistance. crompton-100w-delphinus-plus-hi…
Protection and Surge Handling
The fixture includes 5kV inbuilt plus 10kV external surge protection, designed to handle voltage fluctuations. These protection features make the high bay suitable for applications where electrical and environmental protection are important considerations. crompton-100w-delphinus-plus-hi…
Electrical Performance
The Crompton 150W LED High Bay Light is designed for efficient electrical operation in industrial and commercial lighting installations. The technical specifications list a power factor above 0.95 and THD below 10% for the Industrial Highbay range. crompton-100w-delphinus-plus-hi…
240V Operating Voltage
The specific 150W model is specified for 240V operation, with a listed mains current of 0.72A. The approximate fixture weight is 3.144 kg ±10%, which can be considered when planning the mounting structure. crompton-100w-delphinus-plus-hi…
Flexible Mounting and Long Operating Life
Installation flexibility is important when selecting lighting for large industrial areas. The Aquilla Plus high bay range is supplied with a cradle and eye bolt mounting system, allowing it to be installed according to the requirements of the application. crompton-100w-delphinus-plus-hi…
More Than 100,000 Burning Hours
The product range specifies more than 100,000 burning hours, providing a long rated operating life for applications that require regular or extended lighting use. The range is also backed by a 5-year warranty, according to the technical document. crompton-100w-delphinus-plus-hi…

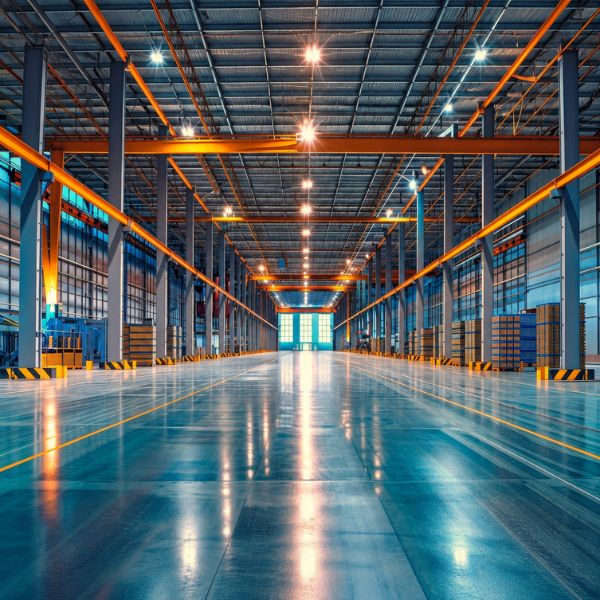

Applications of 150W LED High Bay Light
The Crompton 150W LED High Bay Light can be considered for a variety of large commercial, industrial, and recreational spaces.
Suitable Application Areas
- Warehouses and storage facilities
- Manufacturing plants
- Industrial production areas
- Retail spaces
- Sports arenas
- Convention centres
- Transportation hubs
- Recreational facilities
- Large commercial buildings
These application areas are included in Crompton’s Industrial Highbay product documentation. crompton-100w-delphinus-plus-hi…
Why Choose Crompton 150W LED High Bay Light?
The Crompton 150W LED High Bay Light CIP-346-150-857-60D-HL3-LM-NGG combines 150W LED illumination, 5700K cool white light, a 60° beam angle, IP66 and IK10 protection, and a pressure die-cast aluminium housing. With more than 100,000 rated burning hours, 5kV inbuilt plus 10kV external surge protection, and a 5-year warranty, it is designed for demanding industrial and commercial lighting applications. Its cradle and eye bolt mounting system further supports practical installation in suitable high-ceiling environments.
